40 x 120 SlotPro 8 Slot Standard Extrusion

$61.29$711.10 excl. GST

Click HERE to download the product 3D CAD file in .step format

SKU: 1.0412.8.SPRS Categories: , Tags: ,

Description

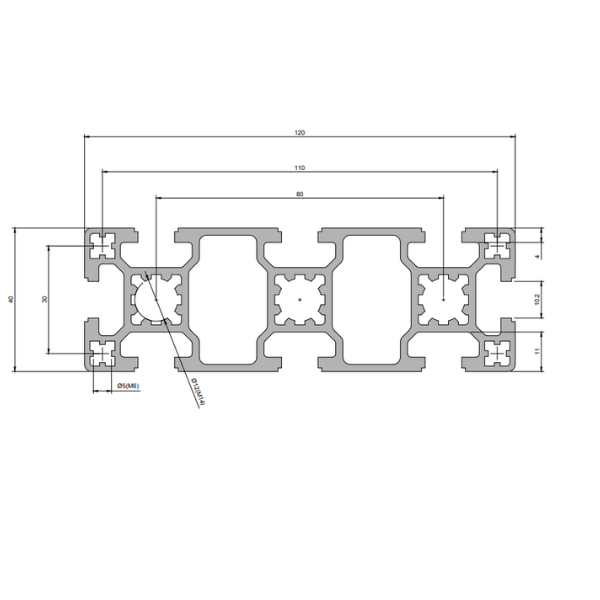

40mm x 120mm SlotPro 8 Slot Standard Extrusion is a 4 Series T-slot profile with a 10mm T-slot, one on each 40mm face and three on each 120mm face. The surface of the profile is resistant to dirt and debris buildup because it is smooth and easy to clean. The 40mm x 120mm T-slot profile is compatible with the 4 series connectors and other components.

The 40×120 profile is a heavy-duty aluminium extrusion and is a great choice for machine frames and guards, workstations, displays and other heavyweight applications. The eight open T-slots are useful for mounting SlotPro components and accessories.

Product Code: 1.0412.8.SPRS

Series: 4 Series

Material: Aluminium

Grade: 6063T5

Finish: Anodised

Colour: Silver

KG/M: 2.5

Length: Custom lengths up to 5800mm

Common Uses: Heavyweight assemblies such as machine frames, workstations, safety guarding, displays and automation applications including conveyors.

We provide a cut and mill service. For custom lengths or design assistance please don’t hesitate to contact us: 0800 37 55 66.

Additional information

Length

500mm, 1000mm, 5800mm Bar, For Custom Lengths Please Contact Us
